Material: Carbon steel
Finish: Plain or Hot-Dip Galvanized

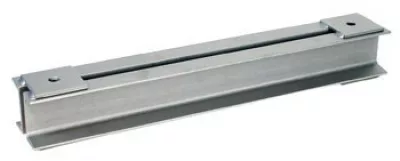

Ordering: Fig. 45 channel assembly; channel size, rod size, name, finish and C to C. Note: that L = (C to C) + 2M + W
Note: Can also be used with a U-bolt Fig. 137 & Fig. 60 washer plates to secure pipe to the center of channel assembly.
45 Channel Assembly Submittal
