Anvil drainage fittings have sufficient sweep to allow free unobstructed flow. They are made with a shoulder of the same diameter as the inside of the pipe, in accordance with ASME B16.12, Type 1. Thus, continuous passage is created when the pipe is screwed to the shoulder, leaving no place for solid matter to collect and clog in the pipe.

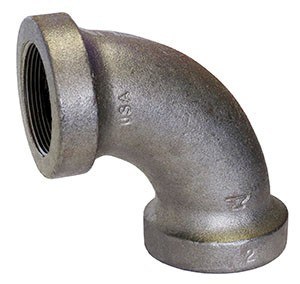

FIG 702A 702A 90° Extra Long Turn Elbow
701, 701R, 702 & 702A Short Turn & Long Turn Elbows Submittal
726 Sanitary Tees 90° Short Turn
718 90° Street Elbow
731 Y-Branch 90° Reducing Long Turn
744 Tucker Connection
730 Y-Branch 90° Long Turn
729 Sanitary Tees 90° Reducing Double Short Turn
701 90° Short Turn Elbow
701R 90° Reducing Short Turn Elbow
735 Y-Branch 45° Reducing
727 Sanitary Tees 90° Reducing Short Turn
