Size Range: 4" through 24"
Material: Two carbon steel half bands and four bolts and nuts.
Finish: Plain or Hot-Dip Galvanized with Zinc Plated Bolts & Nuts
Service: Clamps ductile or cast iron mechanical joint piping or mechanical joint or socket joint fittings together to prevent separation or distortion of pipe line under excessive water pressure.
Approvals: Complies with Federal Specification A-A-1192A (Type 8), ANSI/MSS SP-69 and MSS SP-58 (Type 8). Complies with the requirements of the National Fire Protection Association Standard NFPA-24 for Outside Protection.
Ordering: Specify pipe size, figure number, name and finish.

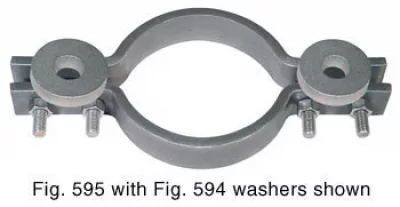

594 595 Socket Clamp Washer Submittal
