Anvil drainage fittings have sufficient sweep to allow free unobstructed flow. They are made with a shoulder of the same diameter as the inside of the pipe, in accordance with ASME B16.12, Type 1. Thus, continuous passage is created when the pipe is screwed to the shoulder, leaving no place for solid matter to collect and clog in the pipe.

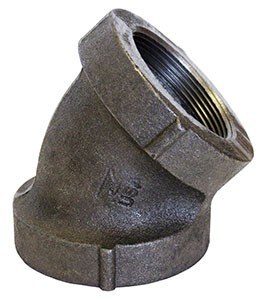

FIG 705 705 45° Short Turn Elbow
703, 705 & 706 Short Turn & Long Turn Elbows Submittal
702 90° Long Turn Elbow
723 Reducing Tee
708 11 1/4° Elbow
727 Sanitary Tees 90° Reducing Short Turn
701 90° Short Turn Elbow
703 60° Short Turn Elbow
744 Tucker Connection
702A 90° Extra Long Turn Elbow
701R 90° Reducing Short Turn Elbow
735 Y-Branch 45° Reducing
