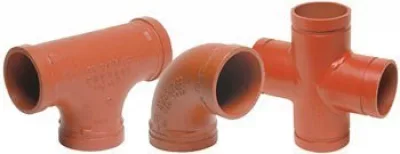

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7050DR 90° Drain Elbow
COOPLOK Concentric Reducer Male NPT
7058-3D 30° Long Rad. Elbow
COOPLOK Reducing Tee - Grooved x Male NPT
7056 45° Adapter Elbow, GR x MPT
COOPLOK Tee, Short Radius
7052-5D 22-1/2° Long Rad. Elbow
7060 Standard Tee
COOPLOK Adapter Elbow, Grooved x Threaded
COOPLOK Grooved x Flange Adapter
7051-5D 45º Long Rad. Elbow Submittal
