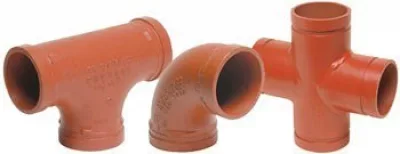

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7072GF GR x Flange Concentric Reducer Submittal
7061 Reducing Tee
7078 Swaged Nipple Reducer Gr x Thread
7070 45° Reducing Lateral
7053 11-1/4° Elbow
7066 Tee Wye
7052-3D 22-1/2° Long Rad. Elbow
7450 90° Short Pattern Elbow
7087 Female Thread Adapter
7063 Threaded Tee
7053-3D 11-1/4° Long Rad. Elbow
