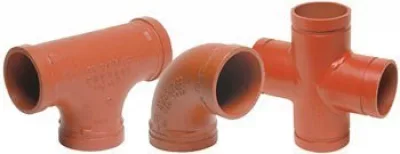

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7068 Cross Submittal
COOPLOK 45° Long Radius Elbow – 1-1/2 D
7053-3D 11-1/4° Long Rad. Elbow
7051 Standard 45° Elbow
7050-3D 90° Long Rad. Elbow
7069 45° Lateral
7050 Standard 90° Elbow
COOPLOK 90° Long Radius Elbow – 1-1/2 D
COOPLOK Tee, Standard Raidus
7050RF Reducing Base Support Elbow
