All standard or “class 125” cast iron flanged fittings are manufactured to ASME specifications and are marked 125 for pipe sizes 12 NPS (300 DN) and smaller; and have plain faces. Unless otherwise specified, cast iron flanged fittings are drilled and faced in accordance with ASME B 16.1.
Cast iron flanged fittings are available in both black painted and galvanized.
803 & 804 Flanged Elbows Submittal
803 90º Reducing Elbow
802 45° Straight Elbow
826 Eccentric Reducer
823 Lateral
811 Straight Tee
825 Concentric Reducer
812 Reducing Tee

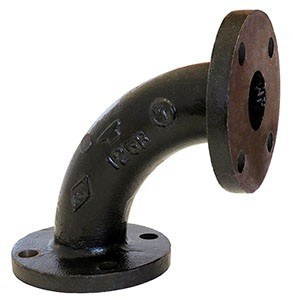

801 90° Straight Elbow
821 Cross
805 90º Base Elbow
