All standard or “class 125” cast iron flanged fittings are manufactured to ASME specifications and are marked 125 for pipe sizes 12 NPS (300 DN) and smaller; and have plain faces. Unless otherwise specified, cast iron flanged fittings are drilled and faced in accordance with ASME B 16.1.
Cast iron flanged fittings are available in both black painted and galvanized.

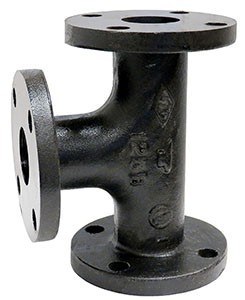

811 Straight Tee Submittal
823 Lateral
801 90° Straight Elbow
812 Reducing Tee
805 90º Base Elbow
825 Concentric Reducer
802 45° Straight Elbow
826 Eccentric Reducer
804 90º Long Radius Elbow
821 Cross
803 90º Reducing Elbow
