Anvil drainage fittings have sufficient sweep to allow free unobstructed flow. They are made with a shoulder of the same diameter as the inside of the pipe, in accordance with ASME B16.12, Type 1. Thus, continuous passage is created when the pipe is screwed to the shoulder, leaving no place for solid matter to collect and clog in the pipe.

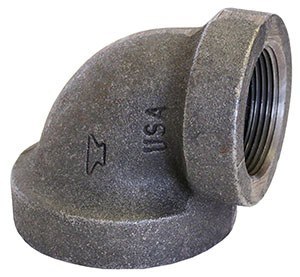

FIG 701R 701R 90° Reducing Short Turn Elbow
701, 701R, 702 & 702A Short Turn & Long Turn Elbows Submittal
734 Y-Branch 45°
754 Bath P-Trap
703 60° Short Turn Elbow
729 Sanitary Tees 90° Reducing Double Short Turn
726 Sanitary Tees 90° Short Turn
702 90° Long Turn Elbow
708 11 1/4° Elbow
727 Sanitary Tees 90° Reducing Short Turn
723 Reducing Tee
719 45° Street Elbow
