Anvil drainage fittings have sufficient sweep to allow free unobstructed flow. They are made with a shoulder of the same diameter as the inside of the pipe, in accordance with ASME B16.12, Type 1. Thus, continuous passage is created when the pipe is screwed to the shoulder, leaving no place for solid matter to collect and clog in the pipe.

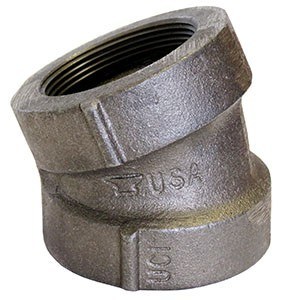

FIG 707 707 22 1/2° Elbow
707, 708, 718 & 719 Elbows & Street Elbows Submittal
702A 90° Extra Long Turn Elbow
701 90° Short Turn Elbow
702 90° Long Turn Elbow
723 Reducing Tee
719 45° Street Elbow
729 Sanitary Tees 90° Reducing Double Short Turn
727 Sanitary Tees 90° Reducing Short Turn
735 Y-Branch 45° Reducing
705 45° Short Turn Elbow
753 Coupling
