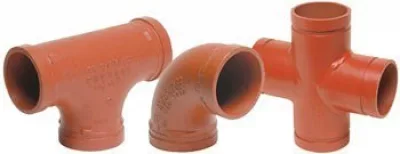

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7051LR Long Radius 45º Elbow Submittal
7077 Swaged Nipple Reducer Gr x Gr
7051-5D 45° Long Rad. Elbow
7053-5D 11-1/4° Long Rad. Elbow
7058-5D 30° Long Rad. Elbow
7068 Cross
7051-6D 45° Long Rad. Elbow
7066 Tee Wye
7065 Standpipe Tee
7052-5D 22-1/2° Long Rad. Elbow
