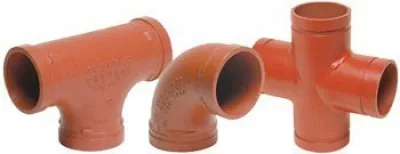

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7057-3D 60º Long Rad. Elbow Submittal
7085 Flange Nipple, #300
7052-3D 22-1/2° Long Rad. Elbow
7052-5D 22-1/2° Long Rad. Elbow
7053-3D 11-1/4° Long Rad. Elbow
7060 Standard Tee
7450 90° Short Pattern Elbow
COOPLOK 22-1/2° Elbow, Standard Radius
COOPLOK Cap
7053 11-1/4° Elbow
COOPLOK Reducing Tee
