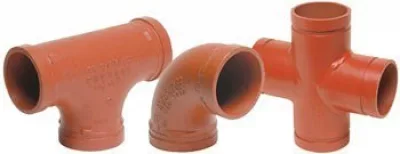

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7052-6D 22-1/2º Long Rad. Elbow Submittal
7051 Standard 45° Elbow
7068 Cross
7057-6D 60° Long Rad. Elbow
7072GF GR x Flange Concentric Reducer
7078 Swaged Nipple Reducer Gr x Thread
7058-5D 30° Long Rad. Elbow
7067 Reducing Tee Wye
7050RF Reducing Base Support Elbow
7082 Adapter Nipple Gr x Bevel
