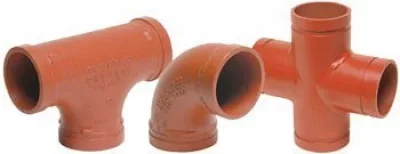

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7057-5D 60º Long Rad. Elbow Submittal
COOPLOK Cross, Standard Radius
7051-3D 45° Long Rad. Elbow
COOPLOK 45° Long Radius Elbow – 1-1/2 D
COOPLOK 22-1/2° Elbow, Standard Radius
7460 Short Pattern Tee
7052 22-1/2° Elbow
7057-6D 60° Long Rad. Elbow
7053-3D 11-1/4° Long Rad. Elbow
7067 Reducing Tee Wye
