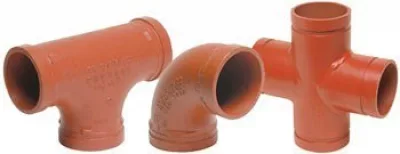

The Gruvlok® short pattern fitting system incorporates 90° elbows and tees in 2” to 8” size range with a 500 psi pressure rating. It is designed for minimum pressure drop and uniform strength.
Gruvlok® short pattern fittings are painted to industry specification and are available galvanized for more corrosive environments.
- CAD design increases internal diameters and provides superior flow capability
- Can be used with standard groove x flange adapters
- Standard wall thickness for maximum durability
Materials Specification
CAST FITTINGS:
Ductile Iron conforming to ASTM A-536
COATINGS:
- Rust inhibiting paint Color: ORANGE (standard) or
- Hot Dipped Zinc Galvanized conforming to ASTM A-153 (optional)
- Other available options: Example: RAL3000 or RAL9000 Series
7450 90º Short Pattern Elbow Submittal
COOPLOK 90° Elbow, Short Radius
7067 Reducing Tee Wye
7079 Swaged Nipple Reducer Gr x Bevel
COOPLOK 45° Lateral
7058-3D 30° Long Rad. Elbow
7053-5D 11-1/4° Long Rad. Elbow
7078 Swaged Nipple Reducer Gr x Thread
COOPLOK Cross, Standard Radius
7070 45° Reducing Lateral
COOPLOK Tee, Short Radius
