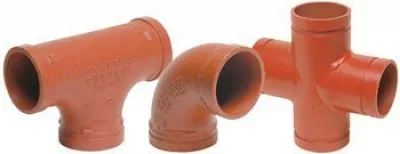

Gruvlok fittings are available through 24" nominal pipe size in a variety of styles. Use the Fitting Size Table to convert nominal pipe size to corresponding pipe O.D.
These fittings are designed to provide minimum pressure drop and uniform strength.
Depending on styles and size, Gruvlok fittings are provided in various materials including ductile iron, forged steel or fabricated steel.
Pressure ratings of Gruvlok standard fittings conform to those of Fig. 7001 Gruvlok coupling.
7086 Hose Nipple Submittal
7055 90° Adapter Elbow, Gr x MPT
COOPLOK 90° Elbow, Short Radius
7050-5D 90° Long Rad. Elbow
COOPLOK 90° Elbow, Standard Radius
COOPLOK Concentric Reducer
7051-5D 45° Long Rad. Elbow
COOPLOK 45° Lateral
7077 Swaged Nipple Reducer Gr x Gr
COOPLOK Cap
7052-3D 22-1/2° Long Rad. Elbow
