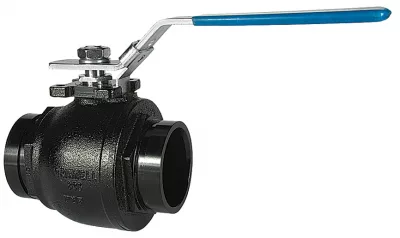

The Model BV835 is a ductile iron, grooved end, regular port, two-piece ball valve that provides for efficient control of fluid in piping systems. The Model BV835 is designed and tested in conformance with MSS SP-110 and MSS SP-72. Flow may be from either direction, and the valves may be positioned in any orientation. The valves are furnished with grooved ends for use with Gruvlok grooved couplings. The handle is provided with a device for padlocking in either the open or closed position. The mounting pad is made to ISO 5211 to allow for mounting of power actuators.
FIG GMBV835 BV835 Grooved End Ball Valve with Lever Handle and Gear Operator
BV835 Grooved End Ball Valve Submittal
8135L – SCI 2-Piece Brass Ball Valve, Lead Free, Standard Port, 400 PSI CWP
12 - Quadrant Unibody Ball Valves, 2000 PSI CWP
600 WOG Full Port Mini Ball Valves Series 8140
COOPLOK Grooved Ball Valve
Series 8160L - Lead Free, Full Port, Nickel Plated, Brass Ball Valve - 600 CWP
600 CWP Full Port Series 8155, Threaded Ends
SX - Quadrant Seal-Welded Ball Valves with ISO Mounting Pad, 1000 - 2000 PSI CWP

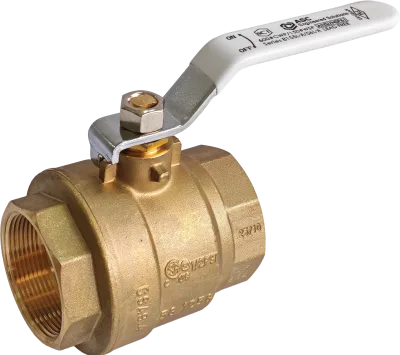

600 WOG Full Port Lead Free Body Series 8155L
