Size Range: 4" through 8"
Material: Carbon steel
Finish: Plain or Hot-Dip Galvanized with Zinc Plated Fasteners
Service: Clamp centers the load on beam to prevent distortion
Approvals: Complies with Federal Specification A-A-1192A (Type 21), WW-H-171-E (Type 21), ANSI/MSS SP-69 and MSS SP-58 (Type 21). Fig. 133 UL Listed when used with 3/8" and 1/2" rod.

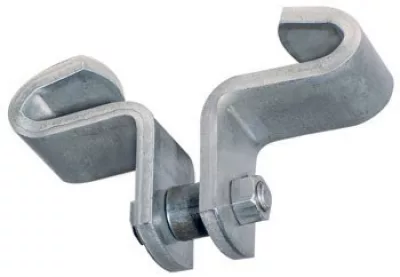

Components: Two half-clamps, pipe spacer and bolt with nut assembled.
Ordering: Figure number, width of flange, name and finish.
Note: Spacer is furnished for use with Fig. 290 weldless eye nuts. Spacer may be removed for use with Fig 278 eye rods.
