Size Range: 3" through 7-5/8"
Material: Carbon steel
Finish: Plain
Service: To be used where it is necessary for the hanger rod to run vertically close to the beams edge, eliminating drilling of holes in structural members.

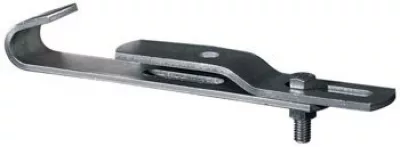

Components: Top slide, bottom hook, nut and bolt – assembled.
Design: Can be adjusted to fit various beam flange widths and thicknesses.
Approvals: Complies with Federal Specification A-A-1192A (Type 25), ANSI/MSS SP-69 and MSS SP-58 (Type 25).
Ordering: Specify size, figure number, type, name.
217 Adjustable Side Beam Clamp Submittal
