Size Range: 3/8" and 1/2"
Material: Carbon Steel
Finish: Plain or Zinc Plated
Service: Designed for fastening flange of “W” and “M” beam. Bottom hole tapped to accommodate hanger rod.
Approvals: Complies with Federal Specification A-A-1192A (Type 23), WW-H-171-E (Type 23), ANSI/MSS SP-69 and MSS SP-58 (Type 23).
Installation: Follow recommended set screw torque values per MSS-SP-69.
Ordering: Specify rod size, figure number, name and finish.
Note: If a retaining clip is desired, you may specify either Fig. 89X or Fig. 89. For length and other ordering information, refer to Fig. 89X and Fig. 89.

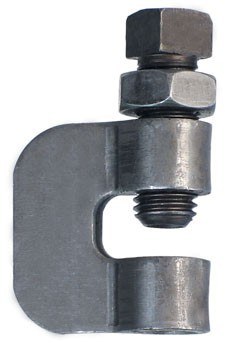

95 C-Clamp w/ Locknut Submittal
